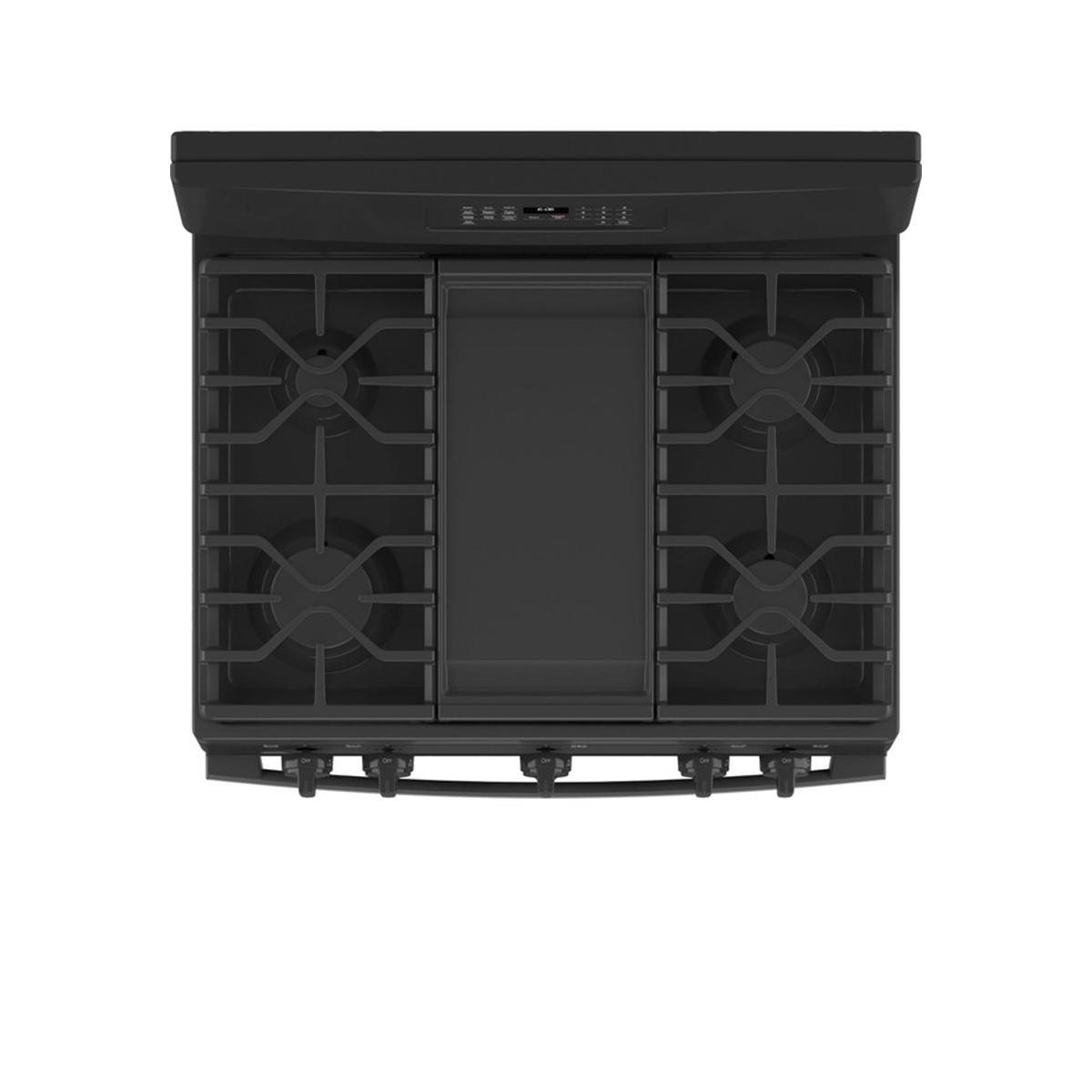

Edge-to-Edge Cooktop
Continuous, edge-to-edge cooktop give you a large cooking space and can handle any cookware.
Power Boil Burner
This 18,000-BTU power boil element produces intense heat to boil water fast.
Center Oval Burner
This center oval burner gives you a fifth burner and the perfect place to use griddles or odd-size cookware.
Precise Simmer Burner
This burner setting provides low, even heat so delicate dishes don’t burn.
Self-Clean Oven
This self-cleaning oven cleans the oven cavity without the need for scrubbing or chemical cleaners.

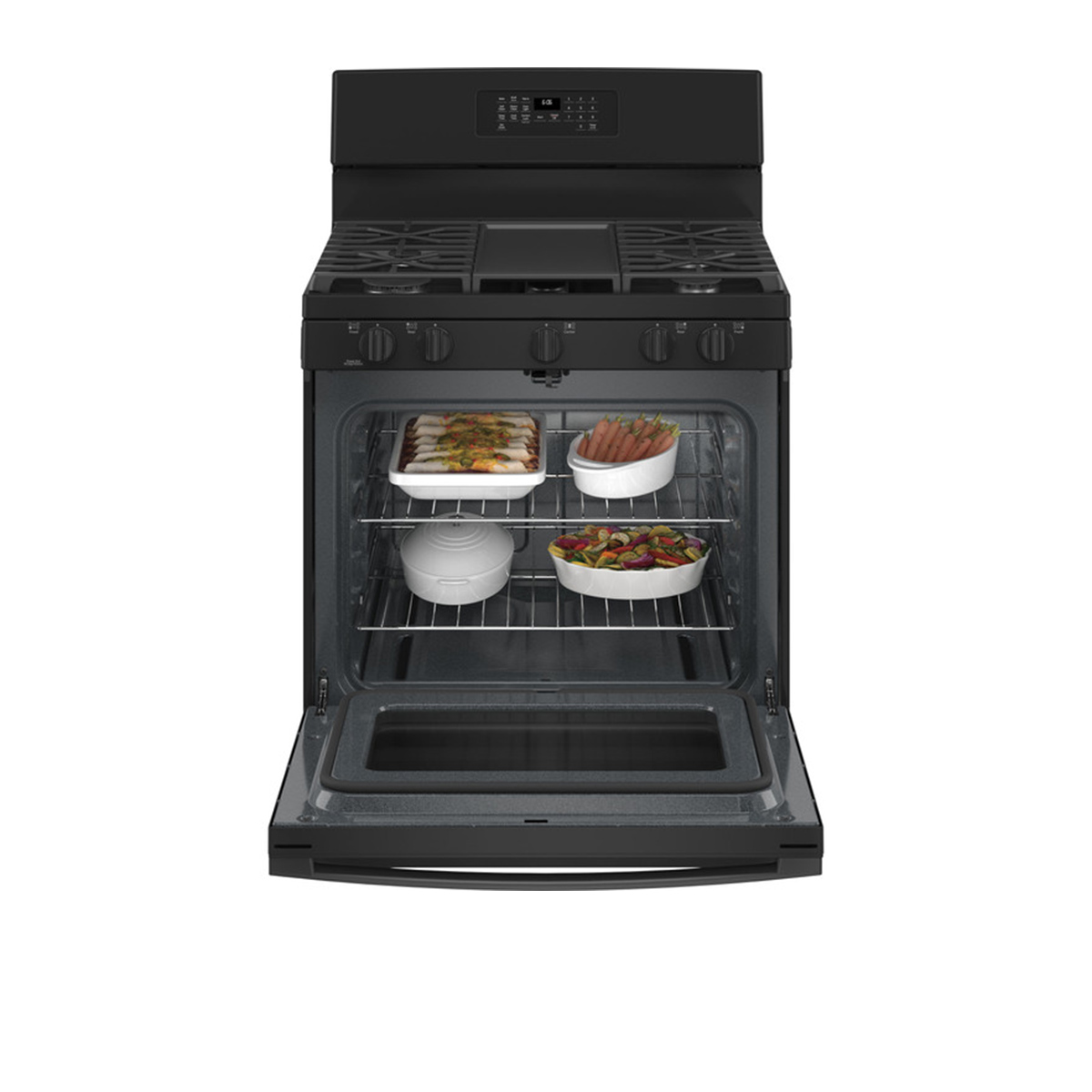

Large Capacity Oven
Cook an entire meal at once with a 5.0 cubic foot oven which provides enough room for multiple dishes.
Heavy Duty, Dishwasher-Safe Grates
These cooktop grates can be cleaned one of two ways – either in the dishwasher, or on the bottom of a self-clean oven.
Removable Storage Drawer
A full-width drawer provides space for kitchen accessory and cookware storage for added convenience in the kitchen.
Delay Bake
Delay bake technology allows you to set up the oven to start preheating and baking at a later time.
Enhanced Shabbos Mode
The Shabbos Keeper connects to your range to automatically enable Shabbos compatible modes each week and before every holiday (Shabbos Keeper sold separately, visit www.zmantechnologies.com for details).
ACCESSORIES
Grates
JXGRATE1 (Optional)
Griddle Accessory
JXGRILL1 Cast Iron Reversible Grill/Griddle (Optional)
LP Conversion Kit
Included
Optional Accessories
WB48X21543 Roller Rack
APPEARANCE
Color Appearance
Black
Control Knobs
Color-Matched
Cooktop Burner Grate Color
Matte Black
Handle Color
Color-Matched
Handle Design
Designer Style
Oven Door Features
Big View Oven Window
CAPACITY
Total Capacity (cubic feet)
5.00 cu ft
POWER / RATINGS
Bake/Broiler BTU Rating – LP (000’s BTU’s)
16.0 Bake / 12.0 Broiler
Bake/Broiler BTU Rating – Nat. Gas (000’s BTU’s)
16.0 Bake / 13.5 Broiler
Top Burner BTU Rating – LP (000’s BTU’s)
(1) 18.0; (1) 5.0; (1) 9.5; (1) 12.0; (1) 8.0
Top Burner BTU Rating – Nat. Gas (000’s BTU’s)
(1) 10.0; (1) 9.5; (1) 12.0; (1) 5.0; (1) 18.0
Volts/Hertz/Amps
120v; 60Hz; 15A
WARRANTY
Labor Warranty
Limited 1-year entire appliance
Parts Warranty
Limited 1-year entire appliance
Warranty Notes
Call for Details
WEIGHTS & DIMENSIONS
Approximate Shipping Weight
210 lbs.
Cabinet Width
30 in
Depth With Door Open
46 1/4 in
Depth Without Handle
26 1/4 in
Height to Cooking Surface (in.)
36 – 36 1/2 in
Net Weight
190 lbs.
Oven Interior Dimensions (W x H x D) (in.)
24 x 19 x 19
Overall Depth
28 3/4 in
Overall Height
47 1/4 in
Overall Width
30 in
FEATURES
Burner – Center
10,000 BTU Oval
Burner – Left Front
18,000 BTU Power Boil
Burner – Left Rear
5,000 BTU Precise Simmer
Burner – Right Front
9,500 BTU
Burner – Right Rear
12,000 BTU
Configuration
Range with Storage Drawer
Control Type
Electronic Touch, Digital Temperature Display, Electronic Oven Controls
Cooking Technology
Traditional
Cooktop Burner Grate Features
Continuous Grates
Cooktop Burner Grate Material
Heavy Cast Iron
Cooktop Burner Type
Sealed
Cooktop Surface
Edge-to-Edge, One-Piece Upswept, Porcelain-Enamel, Color-Matched
Cooktop Type
Continuous Grates
Drawer Type
Storage
Fuel Type
Natural Gas (factory set)
Griddle
WB31X24738 Integrated Non-Stick (Included)
Ignition System
Electronic
Interior Oven Light
1 Incandescent
OU Certified
OU/CRC Enhanced Shabbos Mode, when used with Shabbos Keeper, sold separately
Oven Cleaning Type
Self-Clean
Oven Control Features
Audible Preheat Signal, Auto Self Clean, Sabbath Mode, Control Lock, Capability, Delay Bake Option
Oven Rack Features
2 Oven Racks
Product Type
Free-Standing Single Oven
Sabbath Mode
Yes
