Charcoal Filter Replacement For Microwaves With Behind The Door Grille
Easily install your new charcoal odor filter.
Convenience Cooking Controls
Operating made quick and easy.
Auto and Time Defrost
Defrosting times and power levels are programmed automatically or manually for optimal results.
Turntable On/Off
Controls turntable operation
1.6 Cubic Feet Capacity
1000 Watts (IEC-705 test procedure)
Two-Speed, 300-CFM Venting System
Removes smoke, steam and odors
ACCESSORIES
Optional Kits
15″ Bump Out Kit – JXBUMPWW
Recirculating Charcoal Filter Kit
WB02X35687 (Included)
APPEARANCE
Case Color
Black
Color Appearance
Stainless Steel/Black
Door Color
Stainless Steel
Handle
Stainless Steel Appearance
Installation
Easy Mount
Oven Door Features
Oven Window
CAPACITY
Total Capacity (cubic feet)
1.60 cu ft
Vent CFM
300
ECONOMICAL / QUIET
Non-Vented
Recirculating (Factory Set – Filter Included)
Venting Type
Convertible to External Venting
POWER / RATINGS
Electrical Input – 120V Amperage
15
Electrical Input – 120V Watts
1580
Input Volts/Hertz
120/60
WARRANTY
Labor Warranty
Limited 1-year entire appliance
Parts Warranty
Limited 1-year entire appliance
Warranty Notes
Call for Details

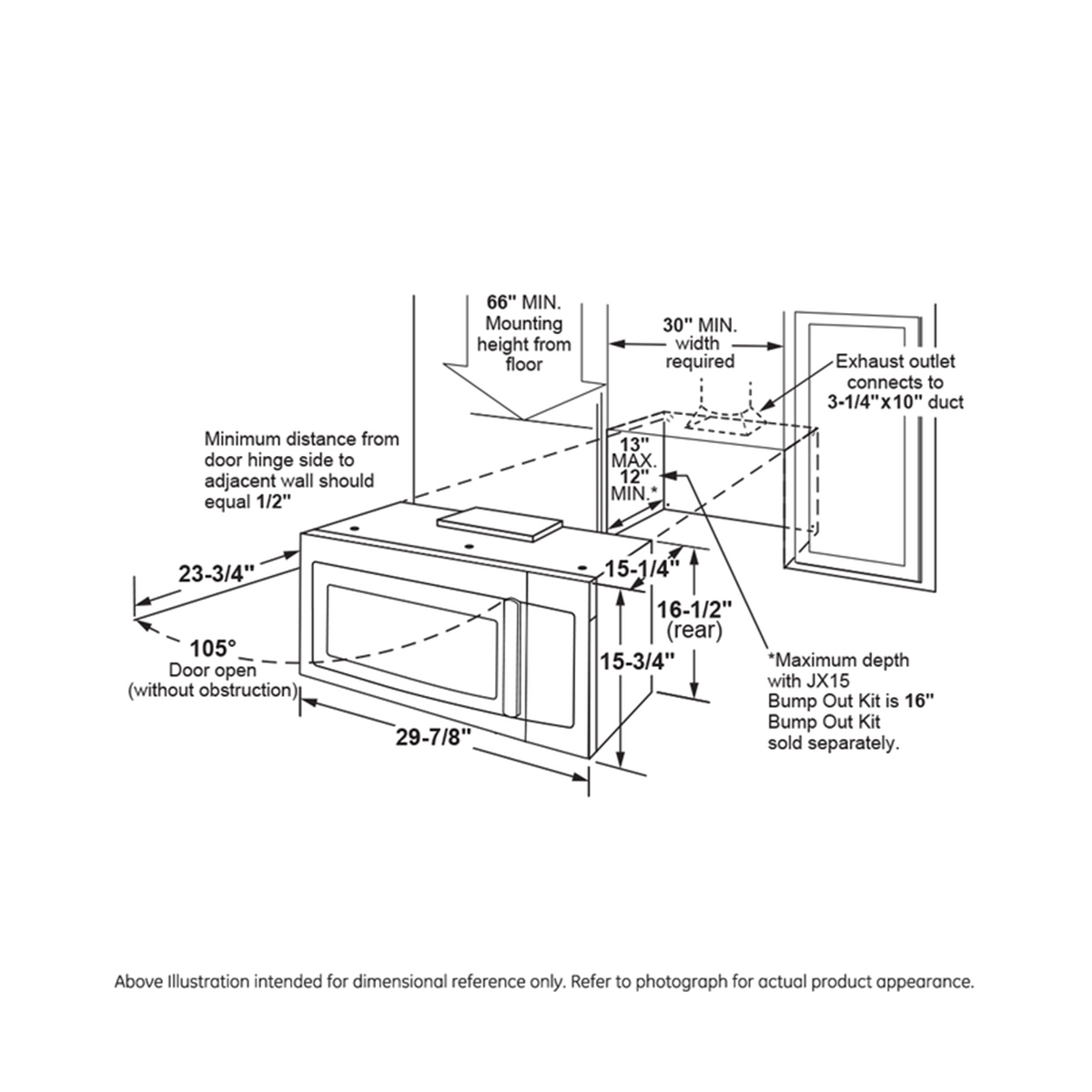

WEIGHTS & DIMENSIONS
Approximate Shipping Weight
63 lbs.
Cabinet Width
30 in
Cavity (W x H x D)
18-13/16 x 9-1/4 x 14-13/32
Net Weight
63 lbs.
Overall Depth
15 9/16 in
Overall Height
16 1/8 in
Overall Width
29 7/8 in
FEATURES

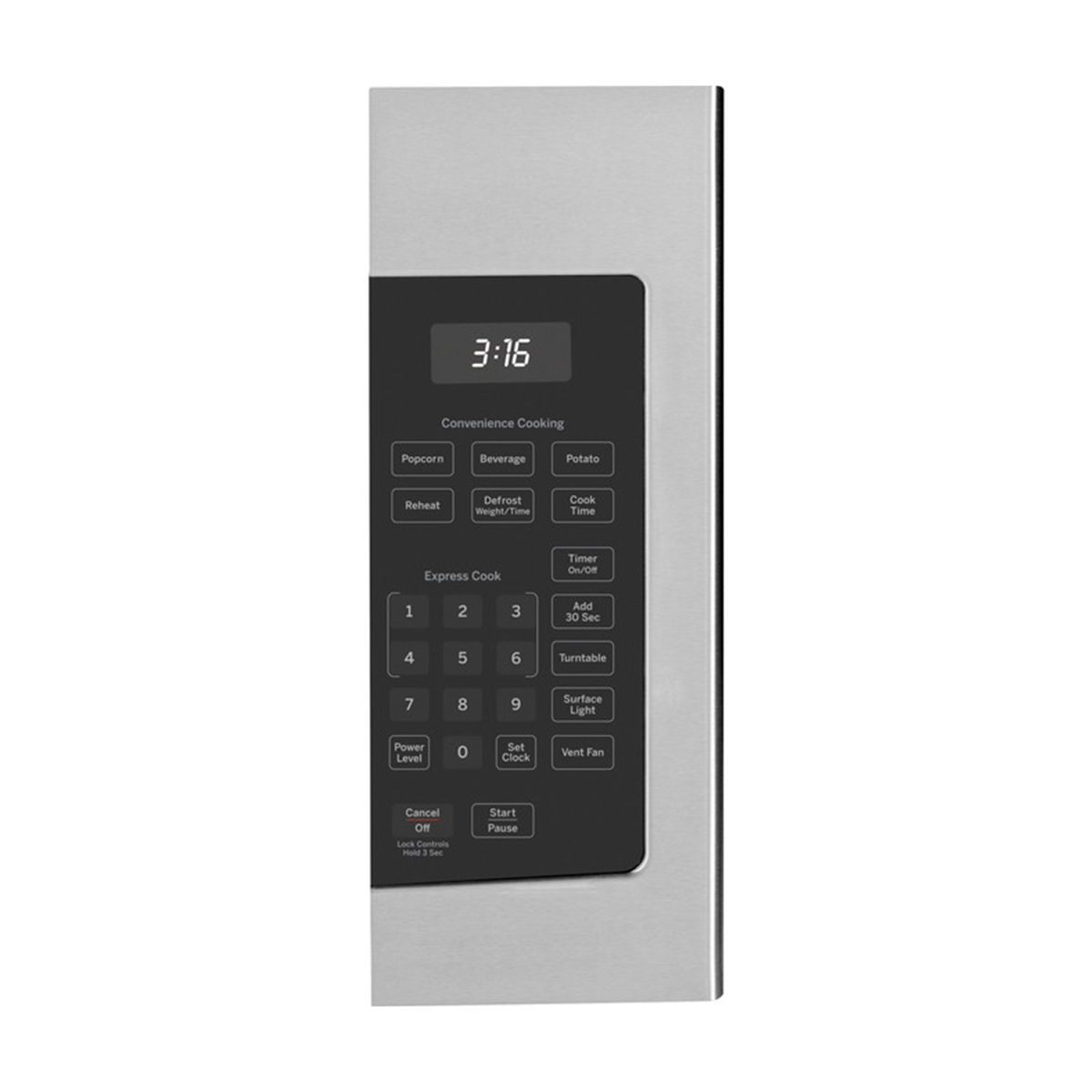

Control Features
Timer On/Off, Lock Controls, Add 30 Seconds, Turntable On/Off, Surface, Light, Vent Fan, Power Level, Set Clock, Cancel/Off, Start/Pause
Control Type
Electronic Touch
Cooking Modes
Microwave
Cooking Technology
Microwave
Cooktop Lighting
Bright/Night/Off
Electronic Digital Display with Clock
Yes
Exhaust Fan
2-Speed, 300-CFM
Express Cook
1-6 Minutes
Interior Oven Light
Incandescent
Microwave Sensor Cooking Controls
Popcorn, Beverage, Potato, Reheat, Defrost: Weight/Time, Cook Time
Microwave Watts (IEC-705)
1,000W
Power Levels
10
Product Type
Over-the-range Microwave
Style
Over-The-Range
Turntable
Glass
Turntable On/Off
Yes
Turntable Size
12 3/4 in
